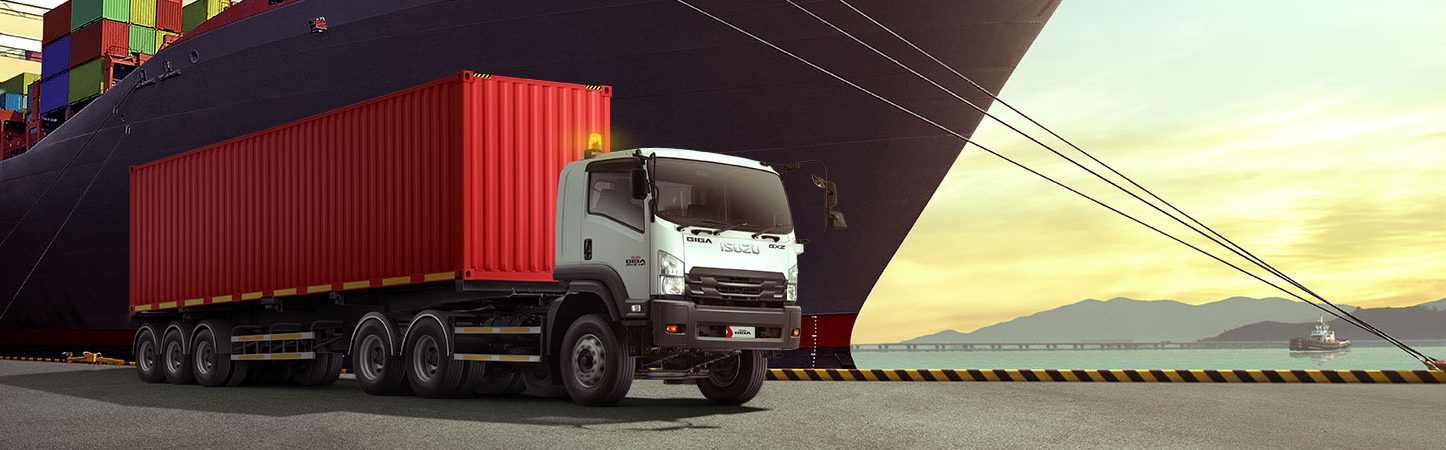

GIGA-GXZ 60 K ABS – TH (N)

Download PDF

DIMENSI

Panjang 6,600 mm
Lebar 2,495 mm
Tinggi 2,925 mm
Jarak Sumbu 3,265+1,370 [WB1+WB2] mm
Julur Depan 1,250 mm
Julur Belakang 715 mm
Jarak Terendah ke Tanah 265 mm
Jarak Depan 2,060 mm
Jarak Belakang 1,850 mm

RODA

Ban Depan Single, 11.00-R20-16PR
Ban Belakang Double,11.00-R20-16PR

SUSPENSI

Depan Multileaf
Belakang Multileaf

LAIN-LAIN

Kapasitas Tangki 200 Ltr
Daya Tanjak Maksimum 30 %
Kecepatan Maksimum 107 km/h
Aki 12 -60 x 2 V-Ah
Alternator 24-60 V-A
Kabin Wide 5 ( With Bed Space )
Dimensi Rangka 870 x 305 x 7.8
Regulasi Emisi Euro 2
Automatic Seat Belt Ada
Radio/DVD/VCD/MP3/USB Ada

MESIN

Model 6 NX1-TCS -
Tipe In-Line 6 Cylinders -
Direct Injection Diesel -
SOHC -
Diameter x Langkah 115 X 125 mm
Isi Silinder 7,790 cc
Tenaga Maksimum 345 / 2,000 PS/rpm
Torsi Maksimum 135 / 1,350 - 1,700 Kgm/rpm
Sistem Suplai Bahan Bakar Heavy Duty Commonrail -

BERAT

Berat Kendaraan 7,890 kg
Berat Total Kendaraan 46,100 kg

TRANSMISI

Model MEB9
Perbandingan Gigi
C 10.34
Gigi 1 7.125
Gigi 2 5.187
Gigi 3 3.750
Gigi 4 2.682
Gigi 5 1.900
Gigi 6 1.383
Gigi 7 1.000
Gigi 8 0.715
Rev 9.015
Perbandingan Gigi Terakhir 5.571

REM

Kontrol Rem Full Air with ABS

KAPASITAS GARDAN

Depan 6000
Belakang 20,000
